How to Insulate the Belly Board Under a Manufactured Home

Cold floors, frozen pipes, sky-high heating bills, and a home that never feels comfortable in winter almost always trace back to one place in a manufactured home: the belly. It is the least visible part of the house and the part most likely to have been neglected, torn open by a plumber, or chewed apart by rodents. The good news is that re-insulating the belly board is one of the highest-return upgrades you can make, and most of it is within reach of a determined DIYer. This guide walks through exactly what the belly board is, how much insulation you actually need, which material wins for your situation, and the installation sequence that lasts instead of sagging back down in a year.

What the “belly board” actually is

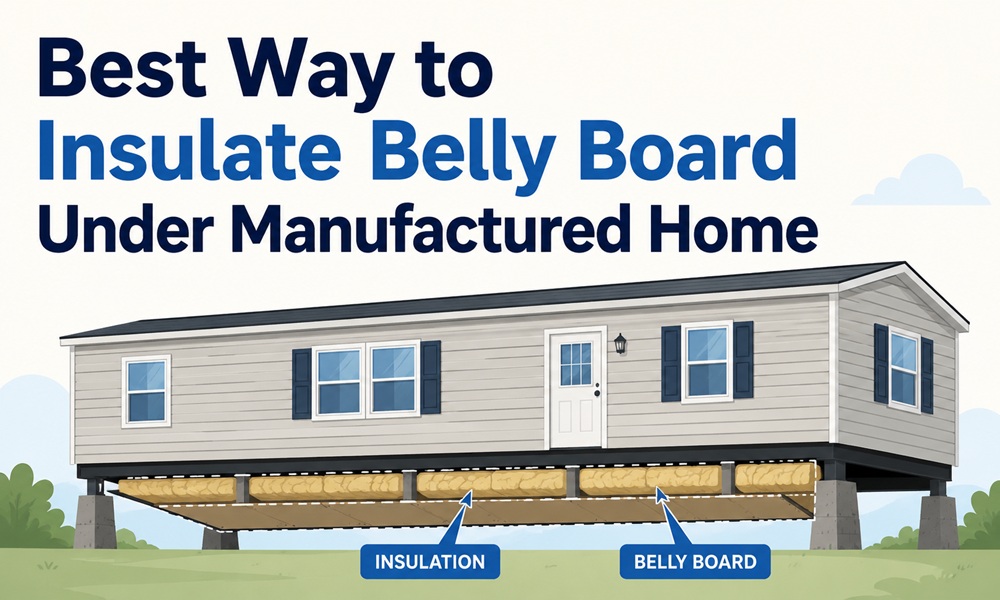

On a manufactured home the floor is built upside-down at the factory. Joists are assembled, ducts and water lines are attached, insulation is draped over the underside, and a tough membrane is stapled across the bottom. That membrane is the belly board. Depending on who you talk to, people also call it the bottom board, belly wrap, bottom wrap, belly paper, rodent barrier, or moisture barrier — they are all the same layer.

It does three jobs at once. It physically holds the floor insulation up against the subfloor, it blocks ground moisture from wicking up into the framing, and it keeps rodents and insects out of the cavity. So “insulating the belly board” really means restoring the entire floor assembly — the membrane, the insulation behind it, and the air seal around every penetration — not simply stuffing in a fresh layer of batts and walking away. If you treat only one of those three jobs, the repair will not hold.

Understanding this is what separates a fix that lasts a decade from one that fails in a single wet season. The membrane and the insulation work as a system. A torn membrane lets insulation fall and moisture in; wet insulation loses most of its R-value and adds weight that tears the membrane further. Break the cycle by addressing the whole assembly at once.

Step 1 — Decide how much R-value you need (by HUD energy zone)

Manufactured homes are rated by HUD wind and thermal zones, not the IECC climate zones used for site-built houses. That distinction matters because your home was originally built to a HUD zone target, and matching or exceeding it is the cleanest way to set your goal. Floor R-value targets rise as you move north:

If your home was built before 2000 — and especially before the 1976 HUD Code — it almost certainly falls short of even Zone 1 minimums. Early homes often shipped with a thin batt that has long since compressed, fallen, or rotted. That is why the belly is usually the single highest-impact upgrade you can make on an older manufactured home: you are not improving a decent assembly, you are rebuilding one that effectively stopped working years ago.

One nuance worth knowing: the data plate inside your home (often in a kitchen cabinet or bedroom closet) lists the HUD zone the house was built for. If you are in a colder region than that original zone — common with homes that were trucked north after sale — treat the colder zone target as your real goal rather than the factory minimum.

Step 2 — Choose the insulation material

Each material trades cost against air-sealing ability, moisture tolerance, and rodent resistance. There is no single right answer; the best choice depends on your climate, your budget, and whether you are hiring out or crawling under there yourself. Use this matrix to narrow it down:

For most cold-climate homes, closed-cell spray foam is the premium answer because it does all three belly jobs in one pass: it insulates, it air-seals, and it forms a hard shell that rodents struggle to chew. The trade-off is cost and the fact that you will not easily be able to inspect or repair a water line buried under cured foam later, so seal and pressure-test plumbing before you foam.

For a tight budget, batts plus support wire remain the workhorse. They are cheap and DIY-friendly, but they do nothing for air leakage and they will sag again if you do not support them properly. Rigid foam board cut snugly between joists is a strong middle path for handy owners — more air-sealing than batts, far cheaper than a foam contractor, and it will not absorb water if a minor leak occurs.

Unique field insight most guides skip: do not push non-permeable insulation tight against the subfloor in a humid or leak-prone home. The belly cavity needs a little air movement to keep water lines from freezing and to let any leak from above dry out. Trapping moisture against the floor framing invites rot and insect attack. In cold climates the safer detail is foam on the down (membrane) side, with the cavity allowed to breathe, rather than packing every void solid and sealing moisture against the wood.

Step 3 — The installation sequence that holds up

Order of operations is everything here. Skip the moisture barrier or the penetration sealing and the rest of the work will not last. Follow this sequence:

1. Pull back the skirting and lay 6-mil polyethylene on the ground as a moisture barrier — it also keeps the workspace cleaner and dramatically lowers humidity in the cavity above it.
2. Lower the belly wrap in roughly 4-foot sections with a utility knife. Remove any wet, moldy, or fallen insulation — never reuse it, because it has lost its loft and is likely contaminated.
3. Inspect joists, ducts, water lines, and wiring. Repair leaks, re-strap sagging pipes up off the ground, and replace any rotted wood before insulating. This is the step people rush and regret.
4. Insulate to your zone target: spray closed-cell foam at 2–3 inches to the underside, fit rigid board between joists, or set batts and hold them with support wire (“tiger teeth”) or staple-up netting so they cannot droop.
5. Re-seal every plumbing, wiring, and duct penetration with belly-repair tape so blown or loose insulation cannot escape and pests cannot enter.
6. Reattach a new belly wrap (rigid fiberglass board or 6-ply poly) with belly tape, screws and washers, or grip-tite nails. Then reinstall skirting — insulated skirting in cold zones adds a useful thermal buffer and slows wind-washing under the home.

Tools and materials you will need

Gather everything before you crawl under, because getting in and out repeatedly is the most miserable part of the job. A typical belly project needs:

• Personal protection: disposable coverall, respirator or N95, safety glasses, knee pads, and a creeper or a tarp to lie on.
• A bright headlamp plus a work light, and a voltage tester to confirm no live wires are exposed.
• Belly-repair tape rated for the bottom board, a heat gun for a fast tape bond, and a utility knife with spare blades.
• Your chosen insulation, plus support wire, netting, or staple-up lath if using batts.
• 6-mil polyethylene sheeting for the ground, and screws with washers or grip-tite nails to reattach the wrap.

Common mistakes that waste the whole effort

The most expensive belly repairs are the ones done twice. Avoid these:

• Covering wet insulation. Sealing damp fiberglass behind a fresh membrane locks moisture against your floor framing and guarantees rot. Dry it out or remove it first.
• Ignoring the leak that caused the damage. If a dripping supply line or poor site drainage soaked the belly, re-insulating without fixing the source just restarts the clock.
• Leaving penetrations open. Every unsealed pipe and wire hole is a rodent door and an air leak. Tape them all.
• Skipping the ground vapor barrier. Bare soil pumps humidity into the cavity year-round; the poly sheet is cheap insurance that protects everything above it.

What it costs

Current installed pricing clusters by home size and method. Treat these as planning ranges; remote sites, severe rodent damage, and difficult access push costs toward the high end:

• Single-wide (about 14×70): roughly $1,200–$2,800 professionally installed; $300–$900 in DIY materials with rigid foam or batts.
• Double-wide (about 28×60): roughly $2,000–$4,200 professionally installed.
• Closed-cell spray foam upgrade: about $2,500–$4,500 for a typical single-wide because of material and labor.

Payback comes mainly from comfort and pipe protection rather than a fast utility-bill return, though both matter. Sealed, insulated skirting alone can trim heating costs by roughly 5–15%, and the belly upgrade ends the cold-floor problem that drives most complaints. Just as important, a sound, sealed belly is what stops the recurring winter emergency of frozen and burst water lines — a single avoided burst can pay for a large share of the project.
